The Relational Model

Outline:

• Structure of Relational Databases
• Database Schema
• Keys
• Schema Diagrams
• Relational Query Languages
• The Relational Algebra

Basic Structure

Formally, given sets $D_1, D_2, \ldots, D_n$ a relation $r$ is a subset of $D_1 \times D_2 \times \ldots \times D_n$. This, a relation is a set of n-tuples ($a_1, a_2, \ldots, a_n$) where rach $a_i \in D_i$.

!!! example

- name = {Wu, Mozart, Gold, Singh, ...} // set of all instructor names
- dept_name = {Music, Physics, Finance, ...} // set of all department names
- salary = {40000, 80000, 87000, 90000, ...} // set of all salaries

Then r = {
    (Wu, Music, 40000),
    (Mozart, Music, 80000),
    (Gold, Physics, 87000),
    (Singh, Finance, 90000) }
is a relation over $name \times dept\_name \times salary$

Relation Schema and Instance

• $A_1, A_2, \ldots, A_n$ are attributes
• $R = (A_1, A_2, \ldots, A_n)$ is a relation schema
  • Example: $instructor = (ID, name, dept_name, salary)$
• A relation instance $r$ defined over schema $R$ is denoted by $r(R)$
• The current values a relation are specified by a table
• An element $t$ of relation $r$ is called a tuple is represented ny a $row$ in a table.

Attributes

• The set of allowed values for each attribute is called the domain(域) of the attribute.
• Attribute values are (normally) required to be atomic (indivisible)
• The special value NULL is a member of every domain and represents an unknown or undefined value.
• The null value causes complications in the definition of operations.

??? note “Atomic”

An attribute value is atomic means it cannot be divided into smaller components. For example, a name attribute must be of type string instead of a structure containing first name and last name.

??? note “NULL value”

In C language, how do we define a NULL value? For ```int age```, we may say ```age = -1``` to represent a NULL value. For ```int temperature```, we may say ```temperature = -999``` to represent a NULL value. But we don't have a universal way to represent NULL value.

So in SQL, we use the keyword ```NULL``` to represent a NULL value for any type of data.

Relations are Unordered

Order of tuples is irrelebant (tuples may be stored in an arbitrary order)

Database Schema

• Database schema is the logical structure of the database.
• Database instance is a snapshot of the data in the database at a given instant in time.

Example:

• Schema: $instructor(ID, name, dept_name, salary)$

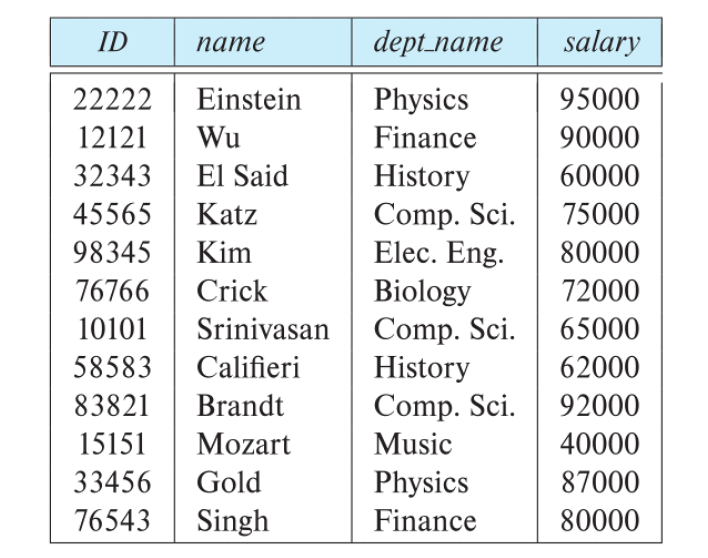

• Instance:

Keys

• Let $K \in R$
• K is a superkey(超键) of R if values for K are sufficient to identify a unique tuple of each possible relation $r(R)$.超键可以唯一确定一个元组。
  • Example: ${ID}$ and ${ID, name}$ are both superkeys of $instructor$
• Superkey K is a candidate key(候选键) if K is minimal.
  • Example: ${ID}$ is a candidate key of $instructor$
• One of the candidate keys is selected to be the primary key(主键).

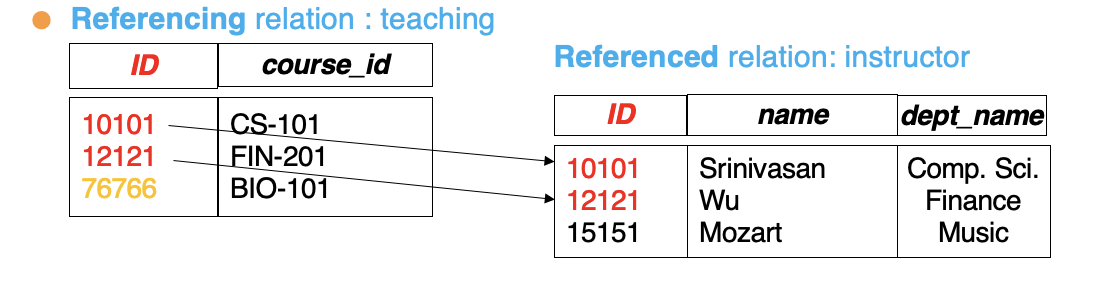

• Foreign key(外键) constraint from attributes A of relation r1 to the priamry key B of relation r2 states that on any datebase instance, the value of A for each tuple in r1 must also be the value of B for some tuple in r2.
  • 在任何数据库实例中，r1 中每个元组对 A 的取值必须是 r2 中某个元组对 B 的取值。

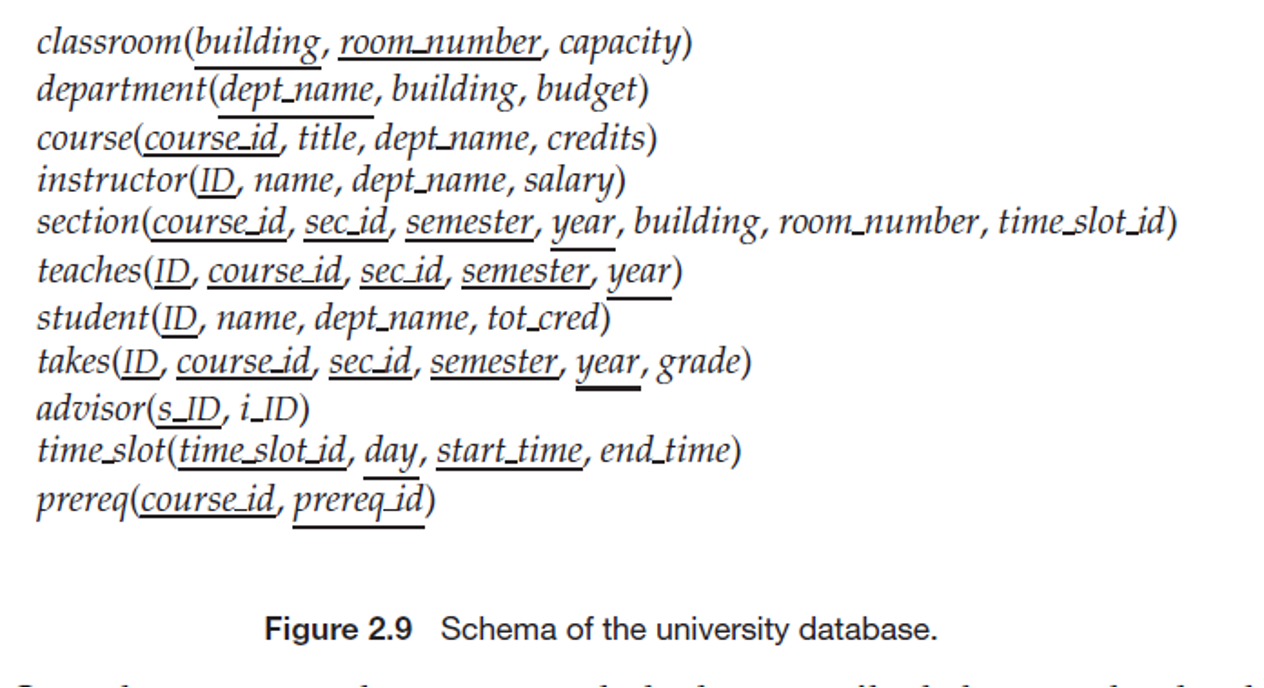

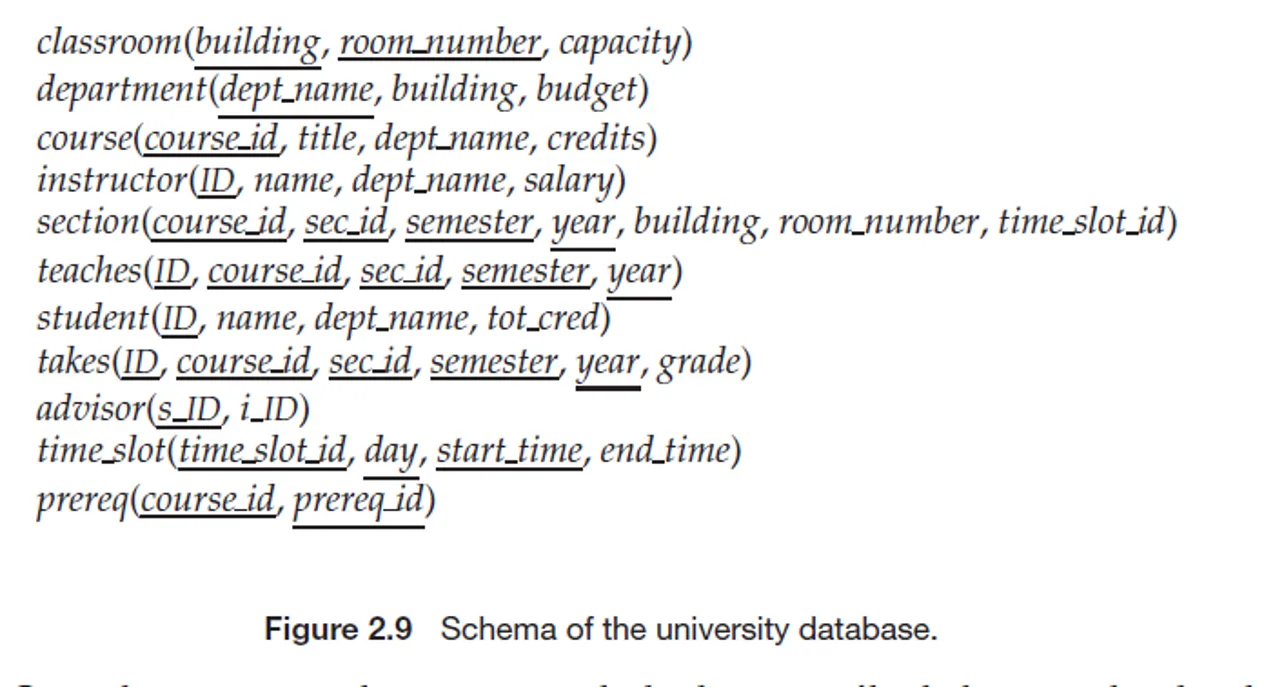

  • 如上图大学数据库模式图中，$instructor$ 的 $dept\_name$ 是一个外键，它指向 $department$ 的 $dept\_name$。
  • Another example:

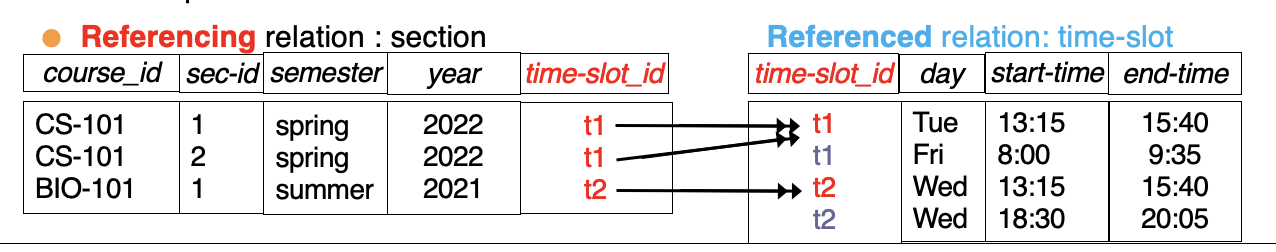

• Referential integrity(参照完整性) constraint requires that values appearing in specified attribute(s) A of any tuples in the referencing relation r1 also appear in specified attribute(s) B of at least one tuple in the referenced relation r2.
  • 引用关系的任意元组中的指定属性 A 的值也必须出现在被引用关系的至少一个元组的指定属性 B 中。

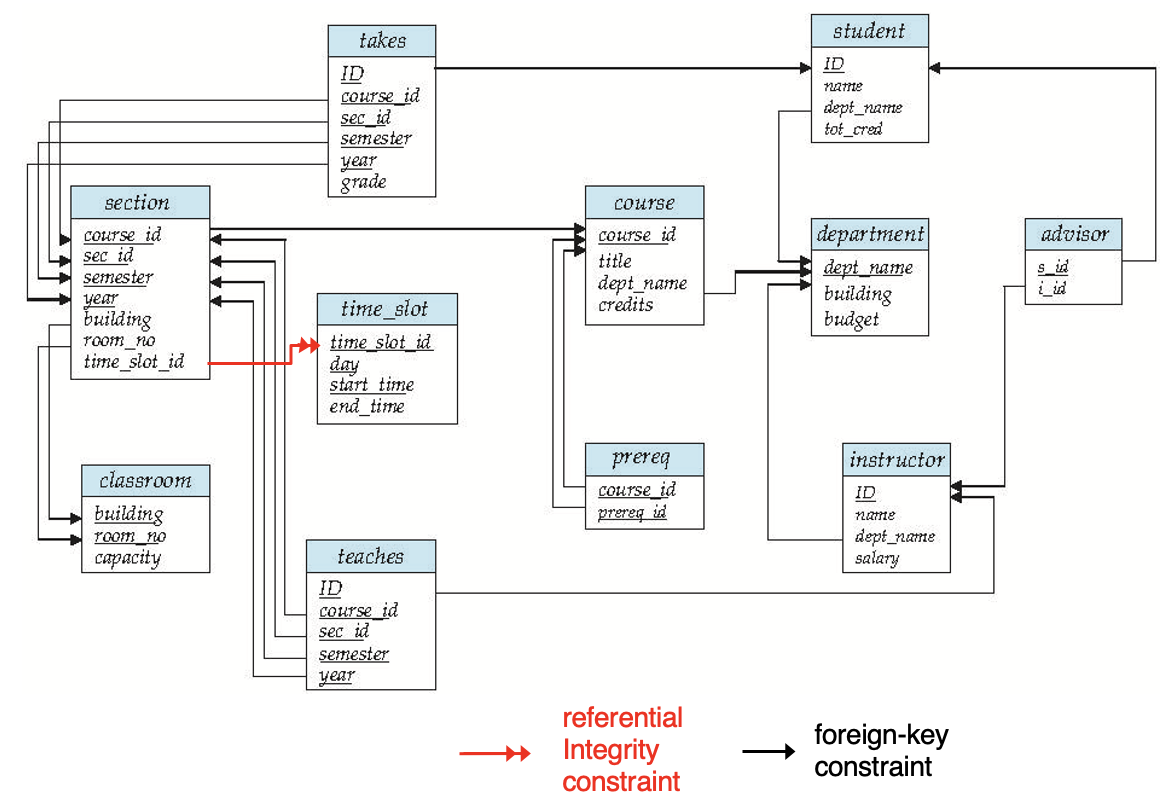

Schema Diagrams

We can draw a schema diagram to represent the schema of a database.

Relational Query Languages

• Procedural vs. non-procedural, or declarative
• “Pure” languages:
  • Relational algebra(关系代数)
  • Tuple relational calculus(元组关系演算)
  • Domain relational calculus(域关系演算)
• The above 3 pure languages are equivalent in computing power.
• We will concentrate on relational algebra.
  • Not Turing-machine equivalent
  • Consist of 6 basic operations

Relational Algebra

Six basic operators:

• select: $\sigma$
• project: $\pi$
• union: $\cup$
• set difference: $-$
• Cartesian product(笛卡尔积): $\times$
• rename: $\rho$

Select Operation

!!! example

<font size = 5>relation r:</font>


![](./figure/ch2/select_op/relation.png)


<font size = 5>$\sigma_{A = B \ \wedge \ D > 5}(r)$</font>


![](./figure/ch2/select_op/res.png)

• Notation: $\sigma_p(r)$
• $p$ is called the selection predicate
• Defined as: $\sigma_p(r) = \{t \in r \ and \ p(t)\}$
  • where $p$ is a formula in propositional calculus consisting of terms connected by: $\wedge$(and), $\vee$(or), $\neg$ (not)
  • Each term is one of: =, $\neq$, $>$, $\geq$, $<$, $\leq$
• Example of selection:
  • $\sigma_{dept\_name = Physics}(instructor)$
  • $\sigma_{salary > 80000}(instructor)$
  • $\sigma_{dept\_name = Physics \ \wedge \ salary > 80000}(instructor)$

Project Operation

!!! example

<font size = 5>relation r:</font>


![](./figure/ch2/project_op/project.png)


<font size =5>$\pi_{A, B}(r)$</font>


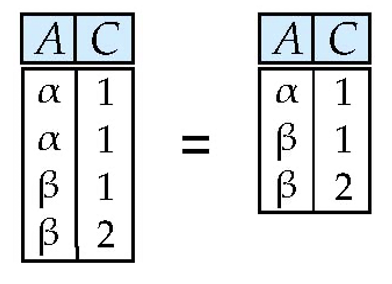

![](./figure/ch2/project_op/res.png)

• Notation: $\pi_{A_1, A_2, \ldots, A_n}(r)$
  • $A_1, A_2, \ldots, A_n$ are attributes of $r$
• Note that the result of a projection is a set, so duplicate tuples are eliminated.
• Example of projection:
  • $\pi_{ID, name, salary}(instructor)$

Union Operation

!!! example

<font size =5>relation r, s:</font>

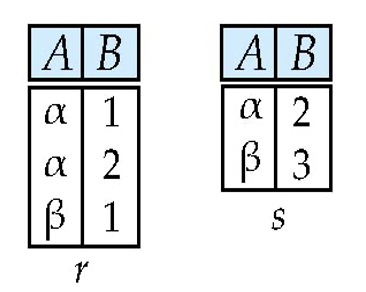

![](./figure/ch2/union_op/union.png)


<font size = 5>$r \cup s$</font>


![](./figure/ch2/union_op/res.png)

• Notation: $r \cup s$
• Defined as:$r \cup s = \{t | t \in r \ or \ t \in s\}$
• For $r \cup s$ to be valid.
  1. $r, s$ must have the same arity(元数)(same number of attributes)
  2. The attribute domains must be compatible(兼容)(example: $2^{nd}$ column of $r$ deals with the same type of values as does the $2^{nd}$ column of $s$)
• Example: to find all courses taught in the Fall 2009 semester, or in the Spring 2019 semester, or in both
  • $\pi_{courst\_id}(\sigma_{semester = Fall \ \vee \ year = 2009}(section)) \cup \pi_{course\_id}(\sigma_{semester = Spring \ \vee \ year = 2019}(section))$

Set difference

!!! example

<font size = 5>relation r, s:</font>

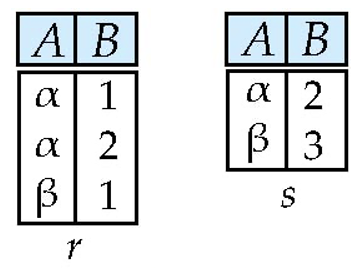

![](./figure/ch2/set_diff/set_diff.png)


<font size = 5>$r - s$</font>


![](./figure/ch2/set_diff/res.png)

• Notation: $r \ - \ s$
• Defined as:$r \ - \ s = \{t \ \in \ r \ and \ t \notin \ s\}$
• Set difference must be taken between compatible relations.
  • $r$ and $s$ must have the same arity.
  • Attribute domains of $r$ and $s$ must be compatible.
• Example: to find all courses taught in the Fall 2009 semester, but not in the Spring 2019 semester
  • $\pi_{course\_id}(\sigma_{semester = Fall \ \wedge \ year = 2009}(section)) \ - \ \pi_{course\_id}(\sigma_{semester = Spring \ \wedge \ year = 2019}(section))$

Cartesian-Product

!!! example

<font size = 5>relation r, s:</font>

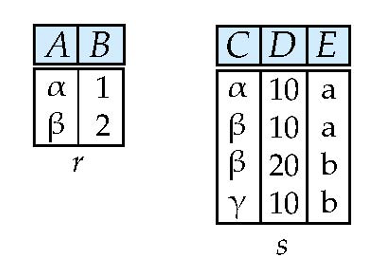

![](./figure/ch2/Cartesian_pro/op.png)


<font size = 5>$r \times s$</font>

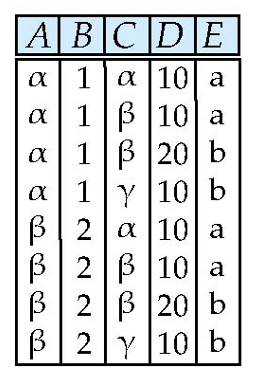

![](./figure/ch2/Cartesian_pro/res.png)

• The Cartesian-product operation(denoted by $\times$) allows us to combine information from any two relations.
• Nitation: $r \times s$
• Defined as: $r \times s = \{t \ q \ | \ t \ \in \ r \ and \ q \ \in \ s\}$
• Assume that attributes of $r(R)$ and $s(S)$ are disjoint.(That is, $R \cap S = \emptyset$)
• If attributes of $r(R)$ and $s(S)$ are not disjoint, then renaming must be used.

Composition of Operations

$\sigma_{A \ = \ C}(r \ \times \ s)$

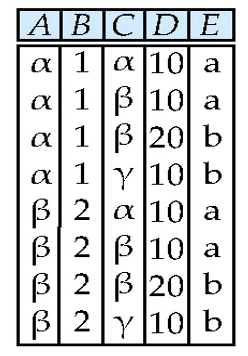

• $r \ \times \ s$

• $\sigma_{A \ = \ C}(r \ \times \ s)$

Rename Operation

• Allows us to name, and therefore to refer to, the results of relational-algebra expressions.
• Example: $\rho_{x}(E)$ renames the result of expression $E$ as $x$.
• If a relation-algebra expression $E$ has arity $n$, then

$$\rho_{x(A_1, A_2, \ldots, A_n)}(E)$$

returns the result of expression $E$ under the name $X$, and with the attributes renamed to $A_1, A_2, \ldots, A_n$.

Example Queries

• Find the names of all instructors in the Physics department, along with the course_id of all courses they have taught

  • Query 1:$\pi_{instructor.name, course\_id}(\sigma_{dept\_name=Physics}(\sigma_{instructor.ID \ = \ section.ID}(instructor \times teaches)))$
  • Query 2:$\pi_{instructor.name, course\_id}(\sigma_{instructor.ID \ = \ teaches.ID}(\sigma_{dept\_name \ = \ Physics}(instructor \times teaches)))$

• Find the names of all instructors in the Physics department, along with the course_id and title of all courses they have taught

  • Query: $\pi_{instructor.name, course.course_id. course.title}(\sigma_{dept\_name = Physics \wedge \ instructor.ID \ = \ teaches.ID \ \wedge \ teaches.course\_id \ = \ course.course\_id}(instructor \ \times \ teaches \ \times \ course))$

• Find the largest salary in the university

  • Step 1:find instructor salaries that are less than some other instructor salary(i.e. not maximum)
    • Using a copy of instructor under a new name d.
    • $\pi_{instructor.salary}(\sigma_{instructor.salary \ < \ d.salary}(instructor \times \rho_{d}(instructor)))$
  • Step 2:Find the largest salary
    • $\pi_{salary}(instructor) \ - \ \pi_{instructor.salary}(\sigma_{instructor.salary \ < \ d.salary}(instructor \times \rho_{d}(instructor)))$
  • 我们想比较薪水，就需要能够两两比较。则薪水相乘，然后选择小于的部分，再从原来的薪水中减去这部分，就得到最大的薪水。

Additional Operations

• Set intersection: $r \cap s$
• Natural join:$r \Join s$
• Semijoin:$r \ltimes_{\theta} s$
• Assignment: $\leftarrow$
• Outer join:$r$ &#10197 $s$, $r$ &#10198 $s$, $r$ &#10199 $s$
• Division Operator: $r \div s$

Set-Intersection Operation

!!! example

<font size = 5>relation r, s:</font>

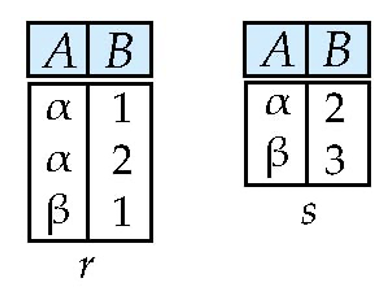

![](./figure/ch2/set_intersection/op.png)


<font size =5>$r \cap s$</font>

![](./figure/ch2/set_intersection/res.png)

• Notation:$r \cap s$
• Defined as: $r \cap s \ = \ \{t \ | \ t \in r \ and \ t \in s \}$
• Assume:
  • $r, s$ have the same arity
  • Attribute domains are compatible
• Note:$r \cap s \ = \ r \ - \ (r \ - \ s)$
• 只是方便了我们表达，并不能增加数据库的查询能力

Natural Join Operation

!!! example

<font size = 5>relation r, s:</font>

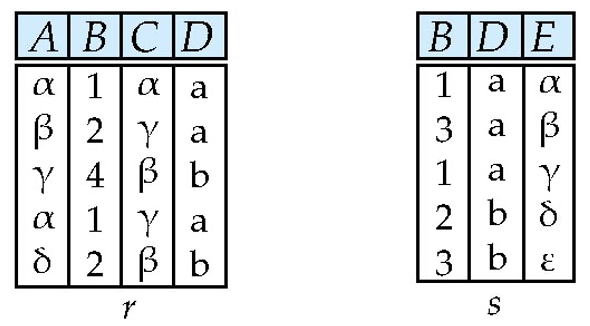

![](./figure/ch2/natural_join/op.png)


<font size = 5>$r \Join s$</font>

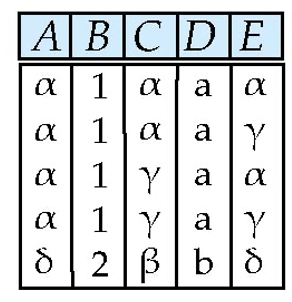

![](./figure/ch2/natural_join/res.png)

• Notation:$r \Join s$
• Let $r$ and $s$ be relations on schemas $R$ and $S$ respectively.Then,$r \Join s$ is a relation on schema $R \cup S$ obtained as follows:
  • Consider each pair of tuples $t_r$ from $r$ and $t_s$ from $s$
  • If $t_r$ and $t_s$ have the same value on each of the attributes in $R \cap S$, add a tuple $t$ to the result, where
    • $t$ has the same value as $t_r$ on attributes of $R$
    • $t$ has the same value as $t_s$ on attributes of $S$
• Example:
  • $R = (A, B, C, D)$
  • $S = (B, D, E)$
  • Result schema = $(A, B, C, D, E)$
• $r \Join s = \pi_{r.A, r.B, r.C, r.D, s.E}(\sigma_{r.B = s.B \ \wedge \ r.D = s.D}(r \times s))$
• 实际上就是将两张表中自动匹配相等的字段，然后将这两张表合并成一张表
• 同样只能简化表达，不能增加查询能力

??? info “Natural Join and Theta Join”

=== "Natural Join"
    - Natural join is associative:$r \Join (s \Join t) = (r \Join s) \Join t$
    - Natural join is commutative:$r \Join s = s \Join r$

=== "Theta Join"
    - Theta join is a generalization of natural join
    - In theta join, we can specify any condition
    - $r \Join_{\theta} s = \sigma_{\theta}(r \times s)$
    - Example: $r \Join_{r.A = s.B} s$

Outer Join

• An extension of the join operation that avoids loss of information.
• Computes the join and then adds tuples form one relation that does not match tuples in the other relation to the result of the join.
• Uses null values:
  • null signifies that the value is unknown or does not exist
  • All comparisons involving null are(roughly speaking) false by definition.

!!! example

<font size = 5>instructor</font>

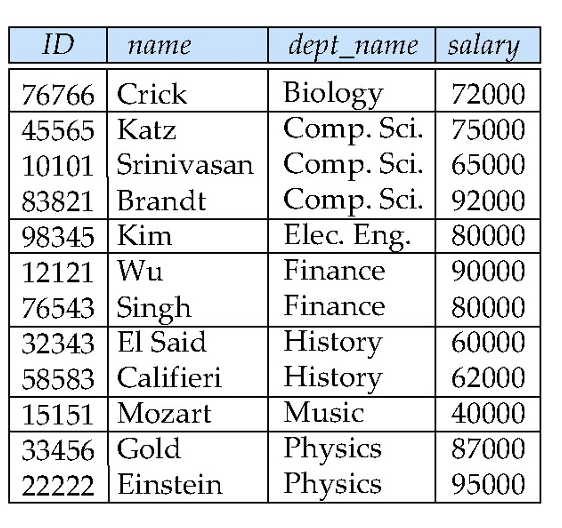

![](./figure/ch2/outer_join/instructor.png)


<font size = 5>teaches</font>

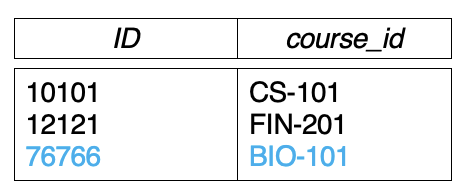

![](./figure/ch2/outer_join/teaches.png)


<font size = 5>$instructor \Join teaches$</font>

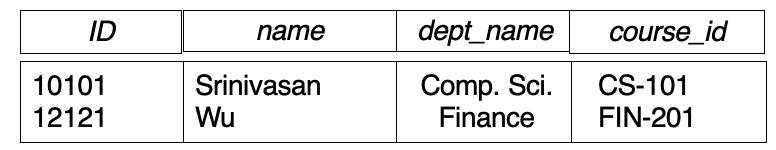

![](./figure/ch2/outer_join/join.png)


<font size = 5>$instructor$ &#10197 $teaches$</font>

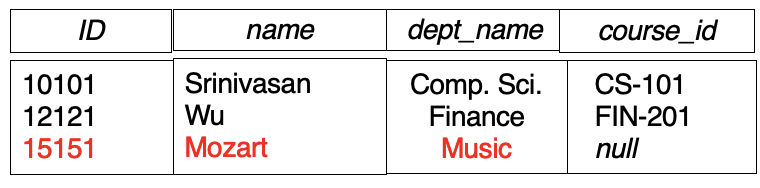

![](./figure/ch2/outer_join/left_outer_join.png)


<font size = 5>$instructor$ &#10198 $teaches$</font>

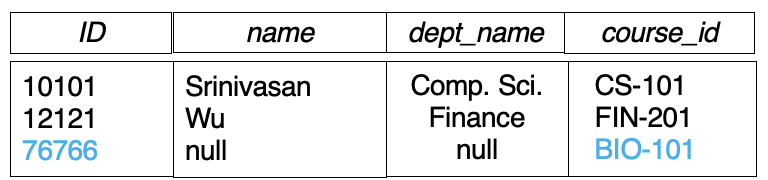

![](./figure/ch2/outer_join/right_outer_join.png)


<font size = 5>$instructor$ &#10199 $teaches$</font>

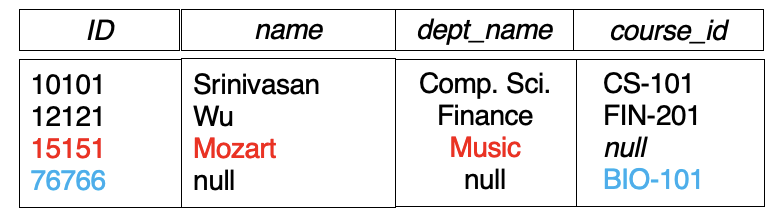

![](./figure/ch2/outer_join/full_outer_join.png)

• $r$ &#10197 $s$ = $r \Join s \cup (r - \pi_R(r \ \Join \ s) \ \times \ \{(null, \ldots, null\})$
• $r$ &#10198 $s$ = $r \Join s \cup \{(null, \ldots, null)\}\ \times \ (s \ - \ \pi_S(r \ \Join \ s))$
• $r$ &#10199 $s \ = \ r$ &#10197 $s \ \cup \ r$ &#10198 $s$
• 只是简化表达，不能增加查询能力

Semijoin Operation(半连接)

• Notation:$r \ltimes_{\theta} s$
• Is a subset of $r$, in which every tuple $r_i$ matches at least ont truple $s_i$ in $s$ under the condition $\theta$
• Defined as: $r \ltimes_{\theta} s = \pi_r(r \Join_{\theta} s)$
• 计算两个关系 $R$ 和 $S$ 之间的连接，但他只返回满足连接条件的**左表($R$)**中的元组。

select name
from instructor
where exists (  select *
                from teaches
                where teaches.ID = instructor.ID and teaches.year = 2022)

$$\pi_{name}(instructor \ltimes_{instructor.ID = teaches.ID}(\sigma_{teaches.year=2022(teaches)}))$$

select name
from instructor
where ID in (select teaches.ID
            from teaches
            where teaches.year = 2022)

Assignment Operation

• The Assignment operation($\leftarrow$) provides a convenient way to express complex queries.
  • Write query a a sequential program consisting of
    • a series of assignments
    • followed by an expression whose value is displayed as a result of the query
  • Assignment must always be made to a temporary relation variable.

Division Operation

!!! example

<font size = 5>relation r, s:</font>

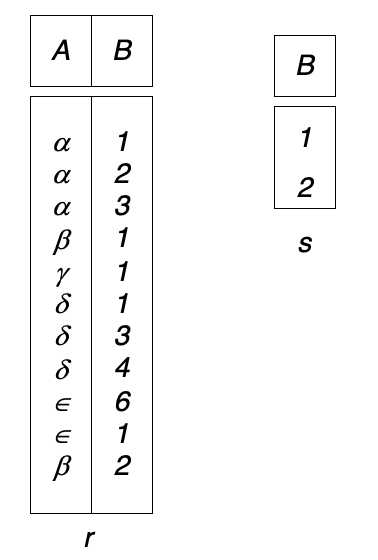

![](./figure/ch2/division/op.png)


<font size = 5>$r \div s$</font>

![](./figure/ch2/division/res.png)

$s$ 中有1，2两个元组，我们到 $r$ 中查看 $B$ 列，找到包含 $s$ 中所有元组的 $A$ 值。然后返回 $A$ 值。

• We can write $r \div s$ as:

$$temp1 \leftarrow \pi_{R-S}(r)$$ $$temp2 \leftarrow \pi_{R-S}((temp1 \times s) \ - \ \pi_{R-S,S}(r))$$ $$result \ = \ temp1 \ - \ temp2$$

!!! example “Another Example”

<font size = 5>relation r, s:</font>

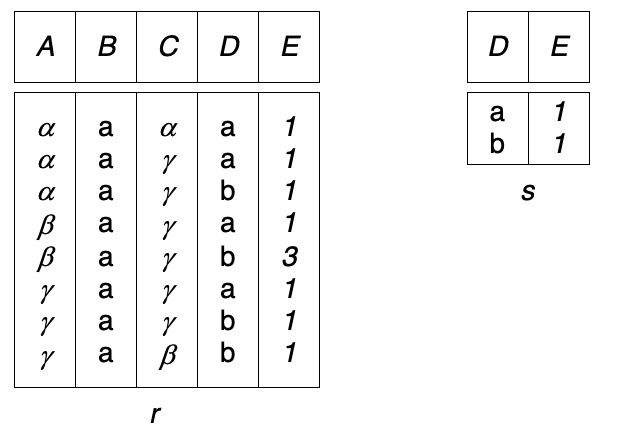

![](./figure/ch2/division/op1.png)


<font size = 5>$r \div s$</font>

![](./figure/ch2/division/res1.png)

Extened Relational-Algebra-Operations

• Generalized Projecttion
• Aggregate Functions

Generalized Projection

我们可以在投影操作中加入算数运算，如下：

$$\pi_{F_1, F_2, \ldots, F_n}(E)$$

Example: $\pi_{ID, name, salary/12}(instructor)$

Aggregate Functions and Operations

• Aggregate functions are functions that take a collection of values as input and return a single value.
• Common aggregate functions:
  • COUNT
  • SUM
  • AVG
  • MIN
  • MAX
• Aggregate operation in relational algebra

$$_{G_1, G_2, \ldots, G_n}\mathcal{G}_{F_1(A_1), F_2(A_2, \ldots, F_n(A_n))}(E)$$

• $G_1, G_2, \ldots, G_n$ is a list of attributes on which to group (can be empty)
• Each $F_i$ is an aggregate function
• Each $A_i$ is an attribute name.

!!! example

=== "sum"

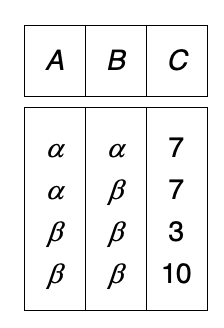

    <font size = 5>relation r:</font>

    ![](./figure/ch2/aggregate/sum_op.png)


    <font size = 5>$\mathcal{G}_{sum(c)}(r)$</font>

    ![](./figure/ch2/aggregate/sum_res.png)


=== "avg"

    <font size = 5>relation r:</font>

    ![](./figure/ch2/aggregate/avg_op.png)


    <font size = 5>$\mathcal{G}_{avg(salary)}(instructor)$</font>

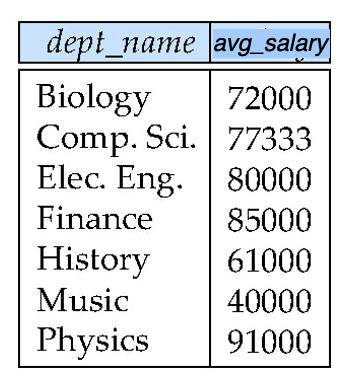

    ![](./figure/ch2/aggregate/avg_res.png)


• Result of aggregation does not have a name
  • Can use rename operation to give it a name
  • For convenience, we permit renaming as part of aggregate operation

$$_{dept\_name}\mathcal{G}_{avg(salary) \ as \ avg\_salary}(instructor)$$

Modification of the Database

• Deletion
• Insertion
• Updating

Multiset Relational Algebra

• Pure relational algebra removes all duplicates
• Multiset(多重集) relational algebra retains duplicates, to match SQL semantics.
  • SQL duplicate retention was initially for efficiency, but is now a feature.
• Multiset relational algebra defined as follows
  • Selection: has as many duplicates of a tuple as in the input, if the tuple satisfies the selection.
  • projection: ont tuple per inpur tuple, even if it is a duplicate.
  • cross product:If there are $m$ copies of $t1$ in $r$, and $n$ copies of $t2$ in $s$, there are $m \times n$ copies of $(t1, t2)$ in $r \times s$.
  • Set operators:
    • Union: $m + n$ copies
    • Intersection:$min(m, n)$ copies
    • Difference:$max(m - n, 0)$ copies

SQL and Relational Algebra

select A1, A2, ..., An
from r1, r2, ..., rm
where P

is equivalent to

$$\pi_{A_1, \ldots, A_n}(\sigma_P(r_1 \times r_2 \times \ldots \times r_m))$$

select A1, A2, sum(A3)
from r1, r2, ..., rm
where P
group by A1, A2

is equivalent to

$$A1, A2, \mathcal{G}_{sum(A3)}(\sigma_P(r_1 \times r_2 \times \ldots \times r_m))$$

select A1, sum(A3)
from r1, r2, ..., rm
where P
group by A1, A2

is equivalent to

$$\pi_{A1, sumA3}(_{A1, A2}\mathcal{G}_{sum(A3) \ as \ sumA3}\sigma_P(r_1 \times r_2 \times \ldots \times r_m))$$
