Indexing

约 1016 个字 -1 行代码 14 张图片 预计阅读时间 3 分钟

Outline:

• Basic Concepts
• Ordered indices
• B+ Tree Index
• B+ Tree File Organization
• B Tree Index Files
• Indices on Multiple Keys
• Indexing on a Flash
• Indexing in Main Memory
• Write Optimized Indices
  • Log Structured Merge(LSM) Tree
  • Buffer Tree
• Bitmap indices

Basic Concepts

Search Key - attribute to set of attributes used to look up records in a file.

An index file consists of records(called index entries) of the form

Search-key	pointer

Two basic kinds of indices:

• Ordered indices: search keys are stored in sorted order
• Hash indices: search keys are distributed uniformly across "buckets" using a "hash function".

Index Evaluation Metrics

• Access types supported efficiently.
  • Point query: records with a specified value in the attribute
  • Range query: or records with an attribute value falling in a specified range of values

支持点查以及范围查询。

• Access time
• Insertion time
• Deletion time
• Space overhead

Ordered Indices

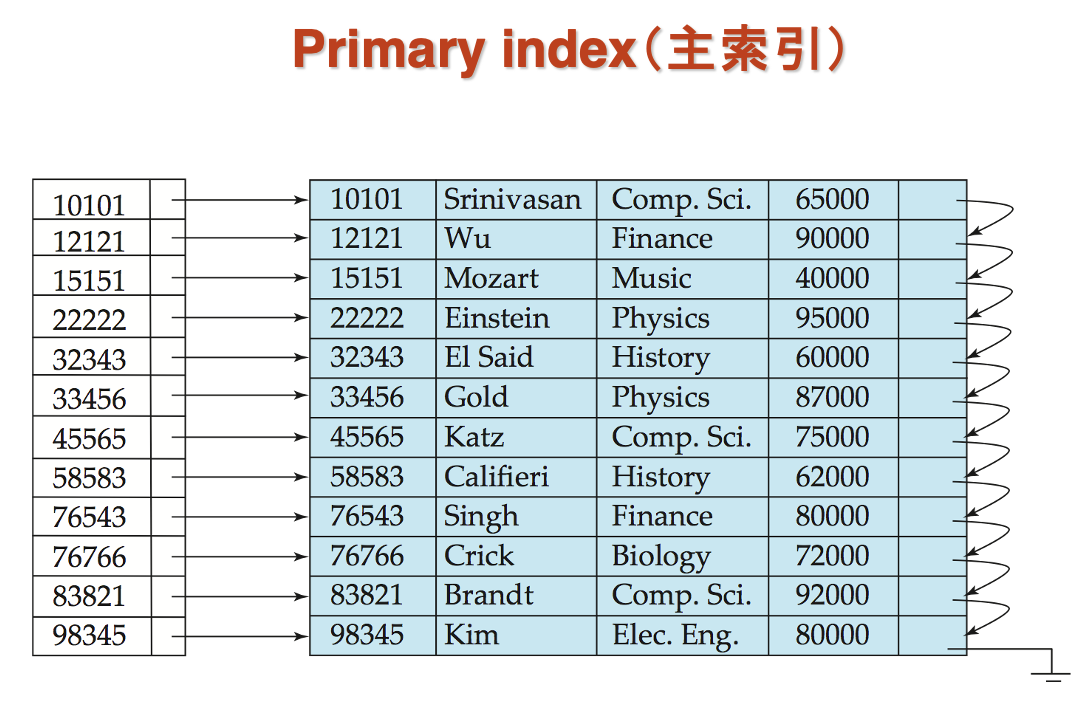

• Primary index(主索引): in a sequentially ordered file, the index whose search key specifies the sequential order of the file.
  • Also called clustering index(聚集索引)
  • The search key of a primary index is usually but not necessarily the primary key.

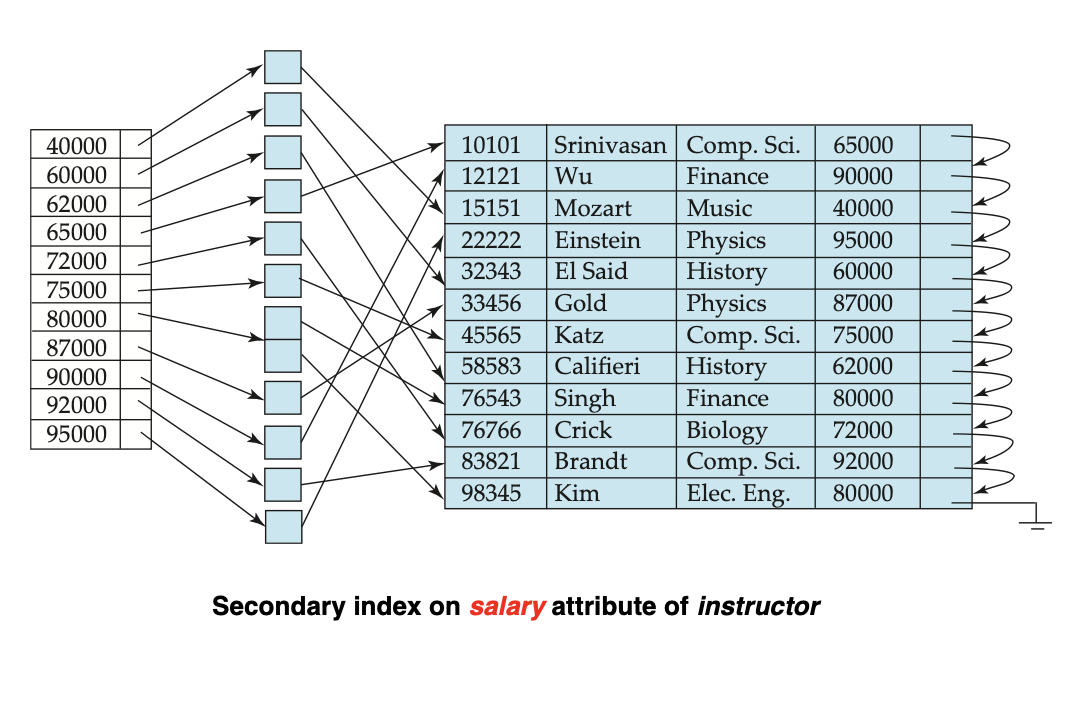

• Secondary index(辅助索引): an index whose search key specifies an order different from the sequential order of the file. Also called non-clustering index
• Index-sequential file(索引顺序文件): ordered sequential file with a primary index.

主索引只能有一个，其他都是辅助索引。

Example

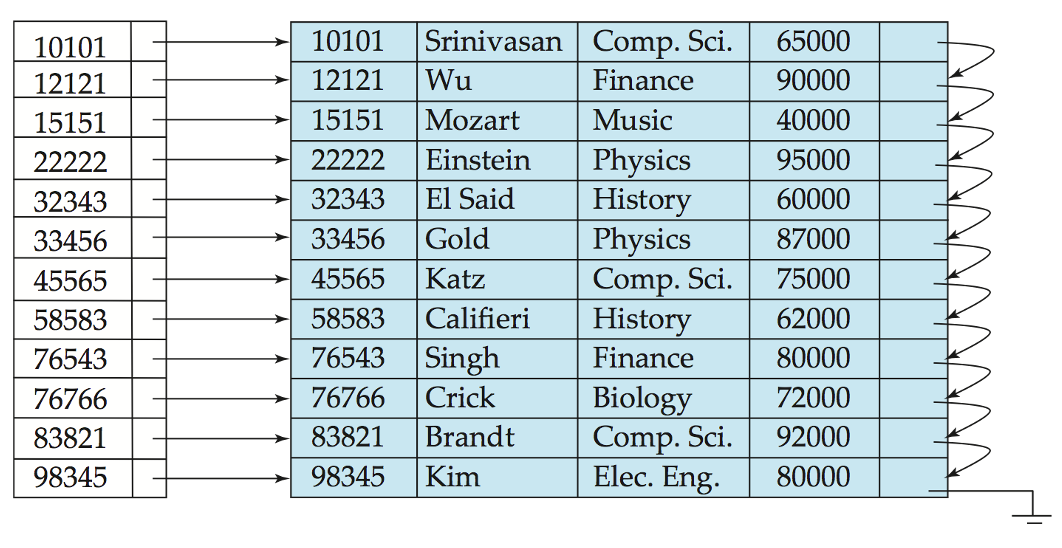

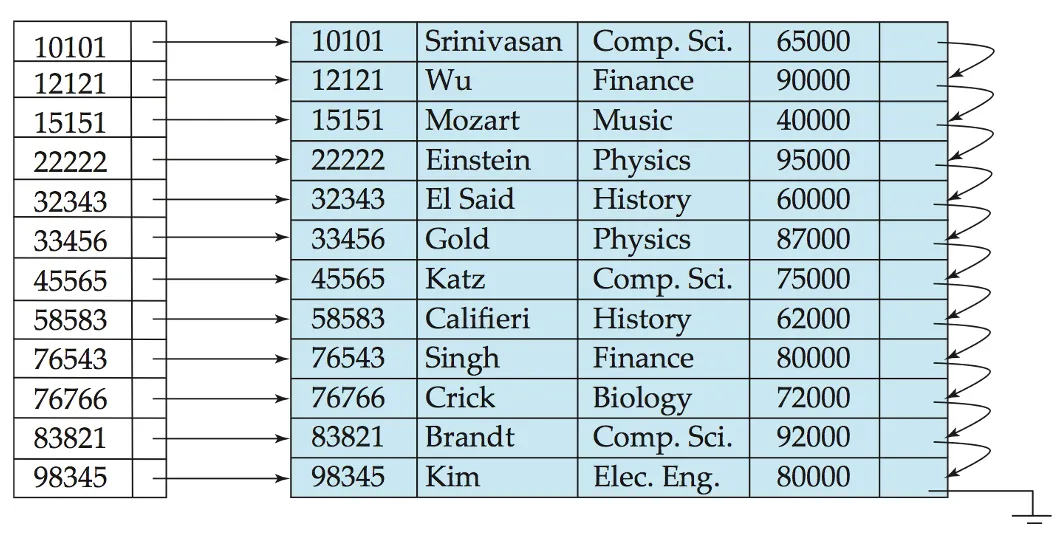

Dense Index Files

Dense index(稠密索引) - index record appears for every search-key value in the file.

每一个 search-key 都要出现在文件里。

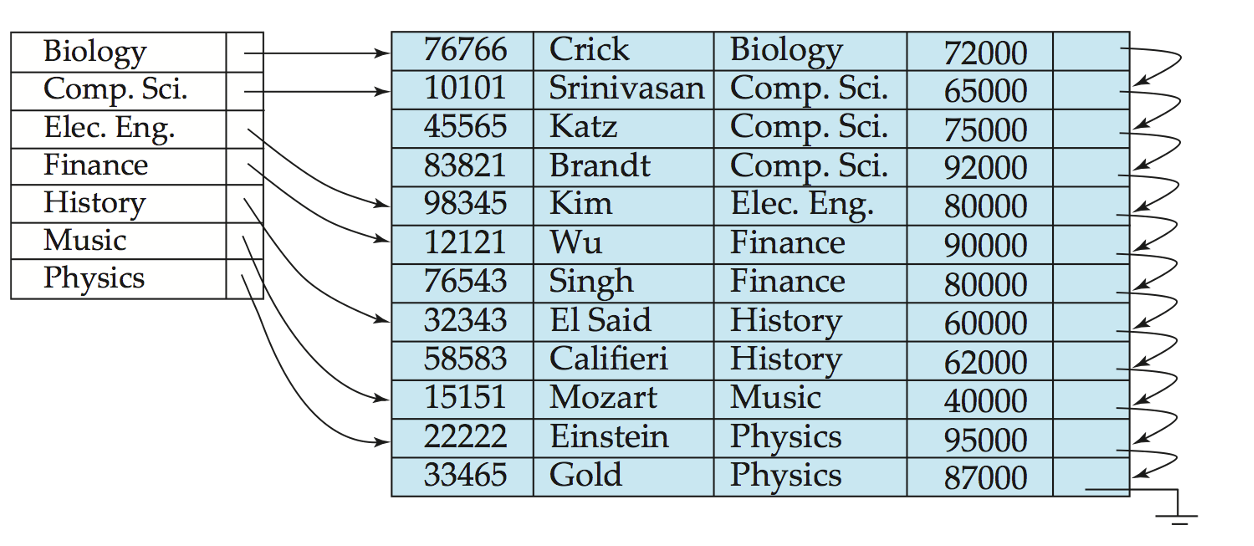

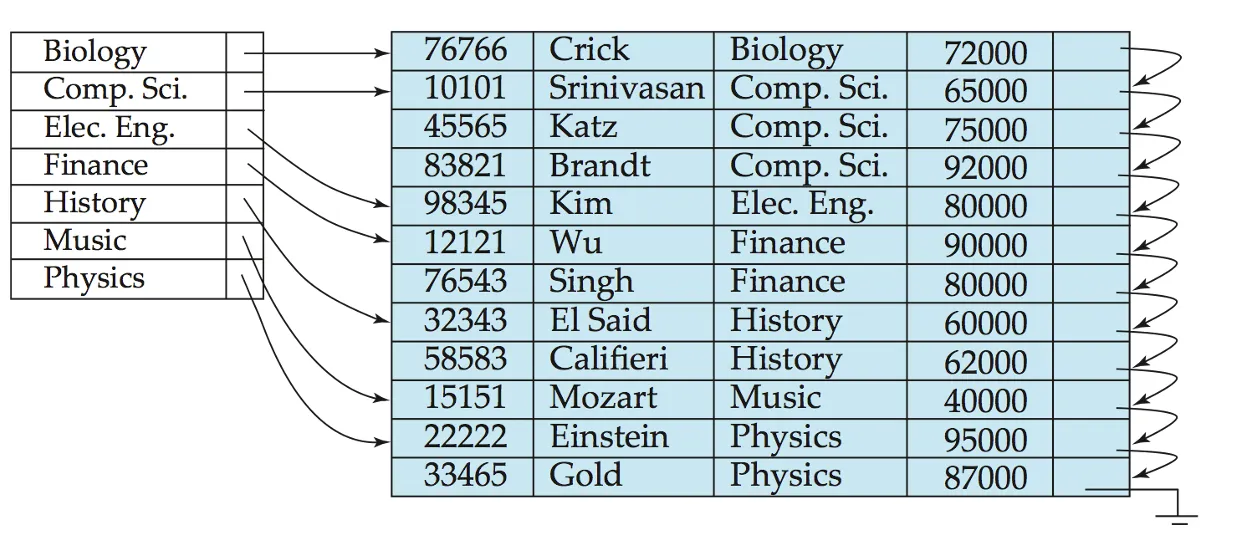

图一是以 ID 为主索引来搜索，图二是以 dept_name 为主索引来搜索。

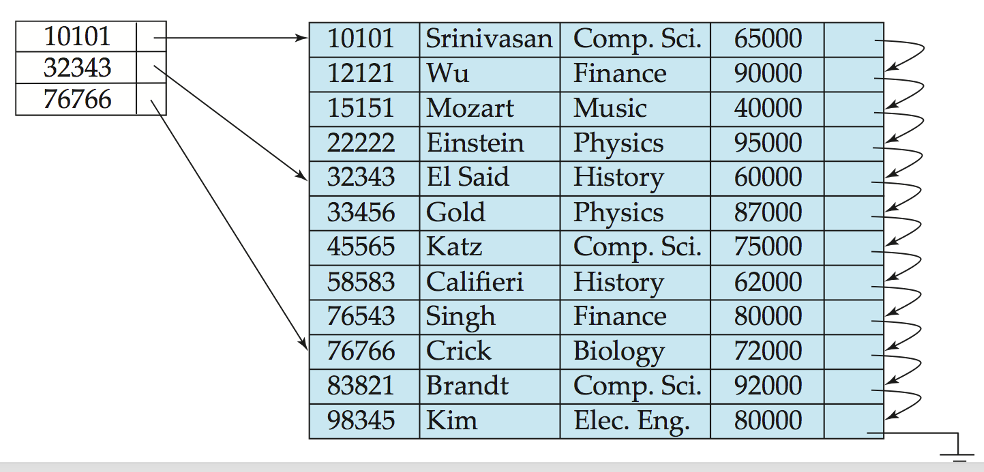

Sparse Index Files

Sparse index(稀疏索引) - contains index records for only some search-key values.

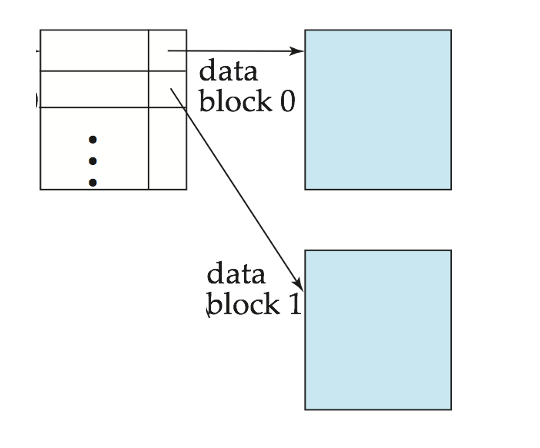

Good tradeoff: sparse index with an index entry for every block in file, corresponding to least search-key value in the block.

Multilevel Index(多级索引)

对索引再次建立索引，类似 B+ 树。

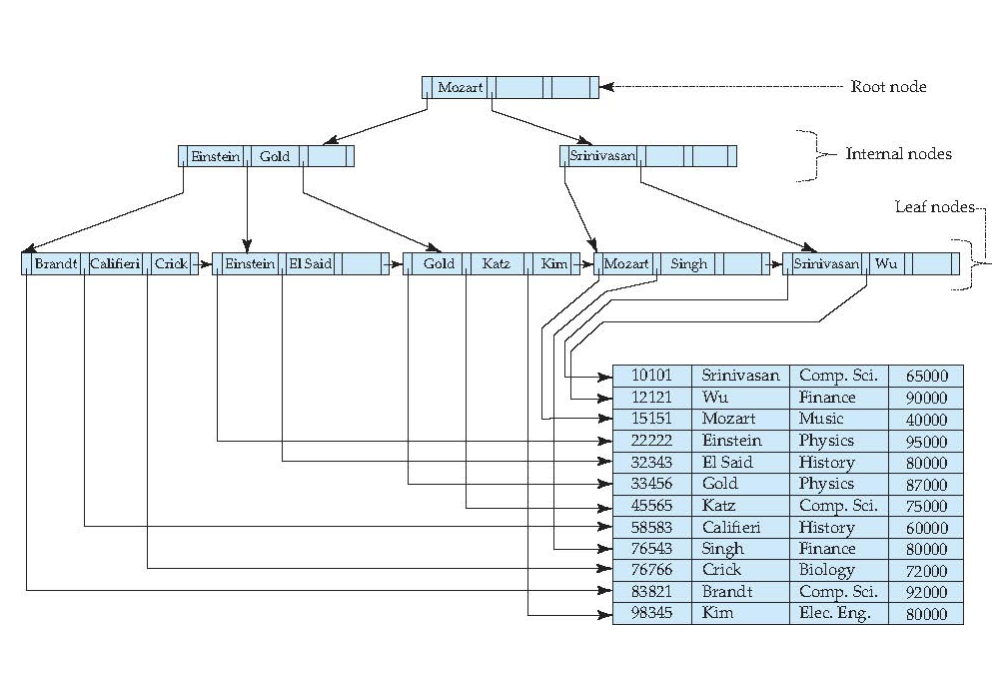

B+ Tree Index Files

• All paths from root to the leaf are of the same length
• Inner node(not a root or a leaf) between \(\lceil n/2 \rceil\) and \(n\) children
• Leaf node between \(\lceil (n-1)/2 \rceil\) and \(n-1\) values
• Special cases:
  • If the root is not a leaf: at least 2 children
  • If the root is a leaf: between \(0\) and \(n-1\) values

数据库中B+ 树一般一个叶子结点就是一个块的大小，即 4KB.

Observations about B+ Trees

• Since the inter-node connections are done by pointers, "logically" close blocks need not be "physically" close.
• The non-leaf levels of the B+ tree form a hierarchy of sparse indices.
• The B+ tree contains a relatively small number of levels
  • Level below root has at least \(2 * \lceil n/2 \rceil\) values
  • Next level has at least \(2 * \lceil n/2 \rceil * \lceil n/2 \rceil\) values
  • ..etc.

如果文件中有 \(K\) 个索引项，那么树的高度不会超过 \(\lceil \log_{\ceil n/2 \rceil}(K/2) \rceil + 1\)

B+ 树的插入，删除等操作这里就不展示了，可以在这个网站查看

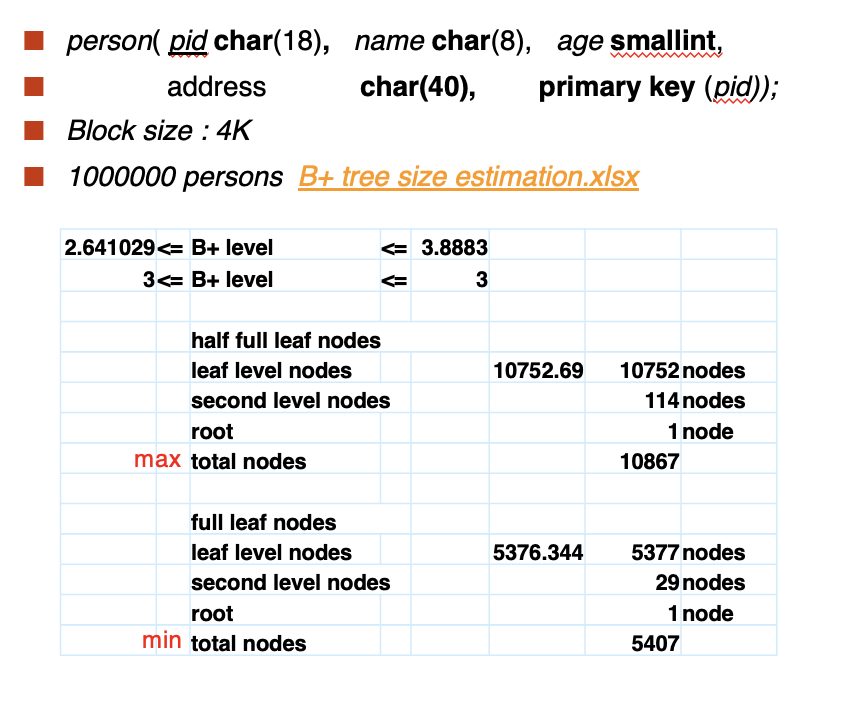

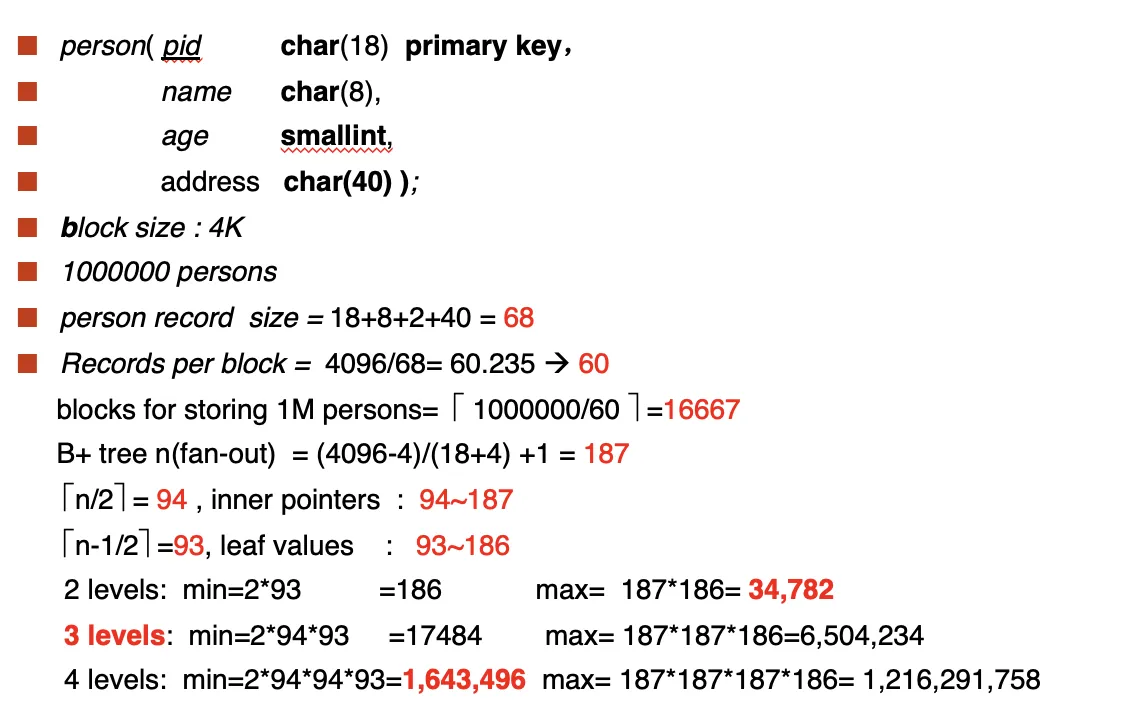

B+ tree: height and size estimation

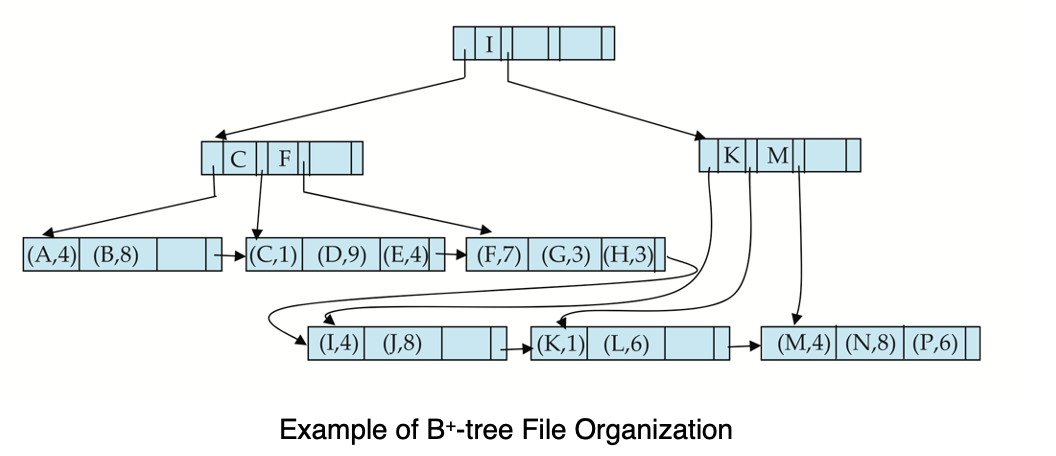

B+ tree File Organization

• B+ tree File Organization:
  • Leaf nodes in a B+ tree file organization store records, instead of pointers.叶子节点不放指针，而是放记录本身。
  • Helps keep data records clustered even when there are insertions/deletions/updates.
• Leaf nodes are still required to be half full
• Insertion and deletion are handled in the same way as insertion and deletion of entries in a B+ tree index.

为了提高空间利用率，我们可以改变“半满”的条件，比如将“半满”定义为 \(\lfloor 2n/3 \rfloor\)

Other Issues in Indexing

• Record relocation and secondary indices
  • If a record moves, all secondary indices that store record pointers have to be updated.
  • Node splits in B+ tree file organizations become very expensive.
  • Solution: use primary-index search key instead of record pointer in secondary index
• Variable length strings as keys
  • Variable fanout
• Prefix compression
  • Key values at internal nodes can be perfixes of full key
  • Keys in leaf node can be compressed by sharing common prefixes.

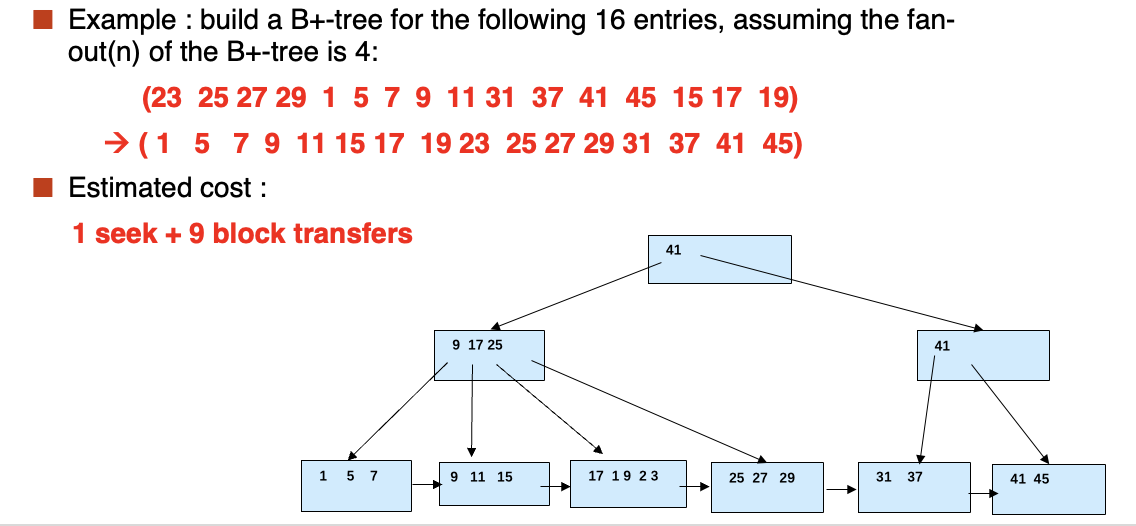

Bulk Loading and Bottom-Up Build

• Efficient alternative 1: Insert in sorted order
  • Sort entries first(using efficient external-memory sort algorithms)
  • insert in sorted order

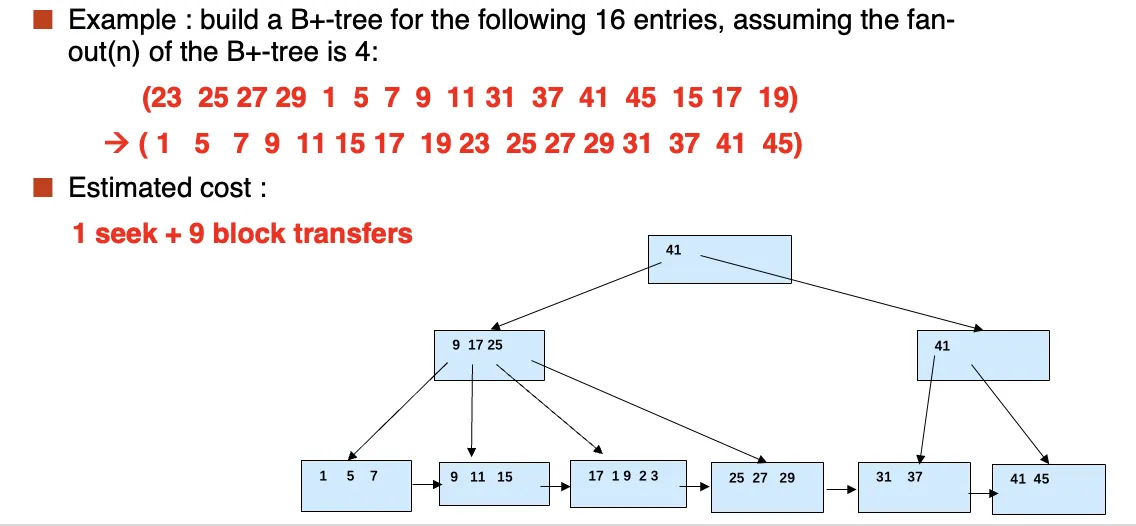

• Efficient alternative 2: Bottom-up B+ tree construction
  • As before sort entries
  • And then create tree layer-by-layer, starting with leaf level
  • Implemented as part of bulk-utility by most database systems

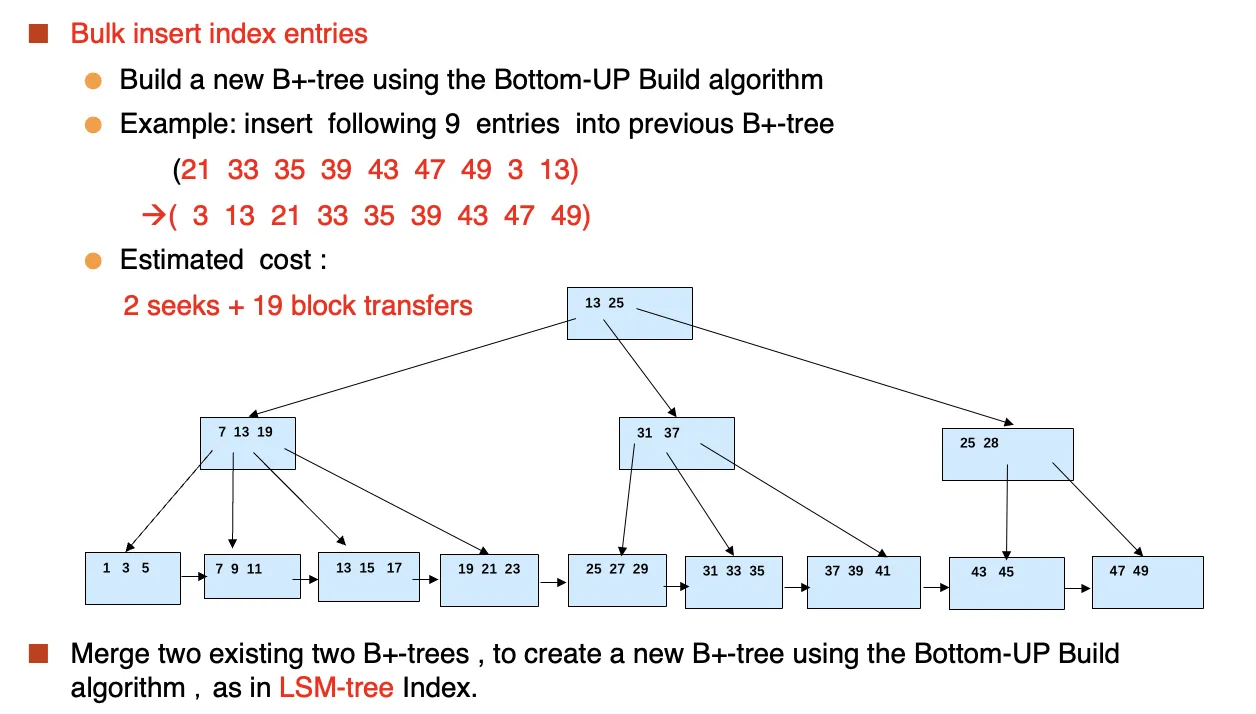

Bulk insert index entries

Indices on Multiple Keys

• Composite search keys are search keys containing more that one attribute.
• Lexicographic ordering: \((a_1, a_2) < (b_1, b_2)\) if either \(a_1 < b_1\) or \(a_1 = b_1 \mathrm{and} a_2 < b_2\)

Indexing in Main Memory

• Random access in memory
  • Much cheaper than on disk/flash, but still expensive compared to cache read
  • Binary search for a key value within a large B+ tree node results in many cache misses
  • Data structures that make best use of cache perferable - cache conscious
• B+ trees with small nodes that fit in cache line are preferable to reduce cache misses
• Key idea:
  • use large node size to optimize disk access
  • but structure data within a node using a tree with small node size, instead of using an array, to optimize cache access

Indexing on Flash

• Random I/O cost much lower on flash
• Writes are not in-place, and (eventually) require a more expensive erase
• Optimum page size therefore much smaller
• Bulk-loading still useful since it minimizes page erases
• Write-optimized tree structures (i.e., LSM-tree) have been adapted to minimize page writes for flash-optimized search trees

Write Optimized Indices

• Two approaches to reducing cost of writes
  • Log-structured merge tree (LSM-tree)
  • Buffer tree

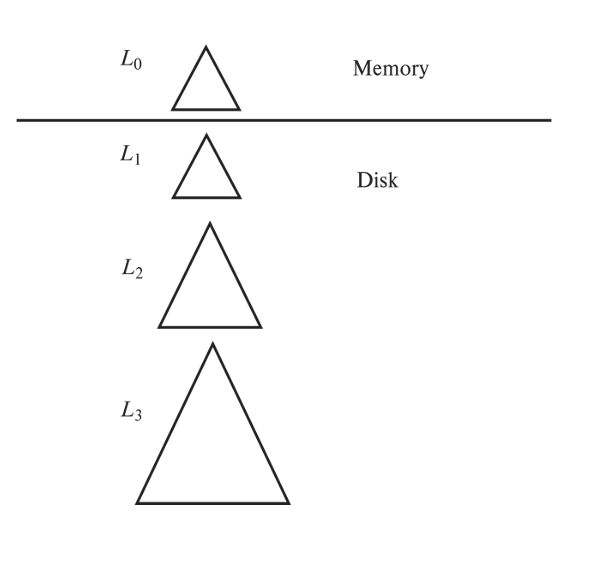

Log Structured Merge Tree(LSM-tree)

• Records inserted first into in-memory tree(\(L_0\) tree)
• When in-memory tree is full, records moved to disk(\(L_1\) tree).如果内存中的树满了，就将内存中的树移动到磁盘上。
  • B+ tree constructed using bottom-up build by merging existing \(L_1\) tree with records from \(L_0\) tree
• When \(L_1\) tree exceeds some threshold, merge into \(L_2\) tree
  • And so on for more levels
  • Sizethreshold for \(L_{i+1}\) tree is \(K\) times size threshold for \(L_i\) tree

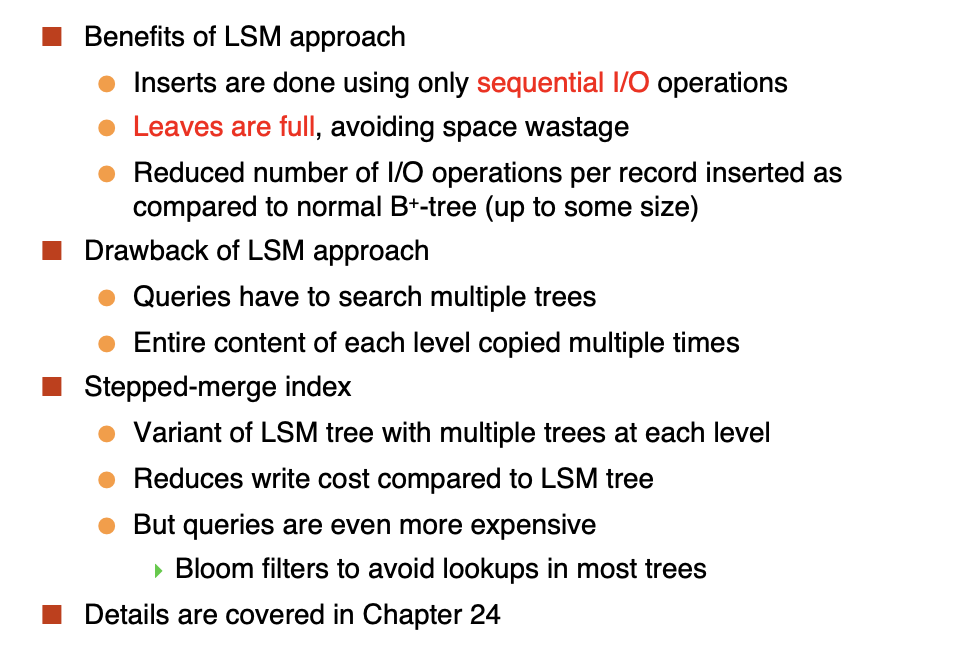

Stepped Merge Index

• Stepped-merge index: variant of LSM tree with k trees at each level on disk
  • When all \(k\) indices exist at a level, merge them into one index of next level.
  • Reduces write cost compared to LSM tree
• But queries are even more expensive since many trees need to be queries
• Optimization for point lookups
  • Compute Bloom filter for each tree and store in-memory
  • Query a tree only if Bloom filter returns a positive result
